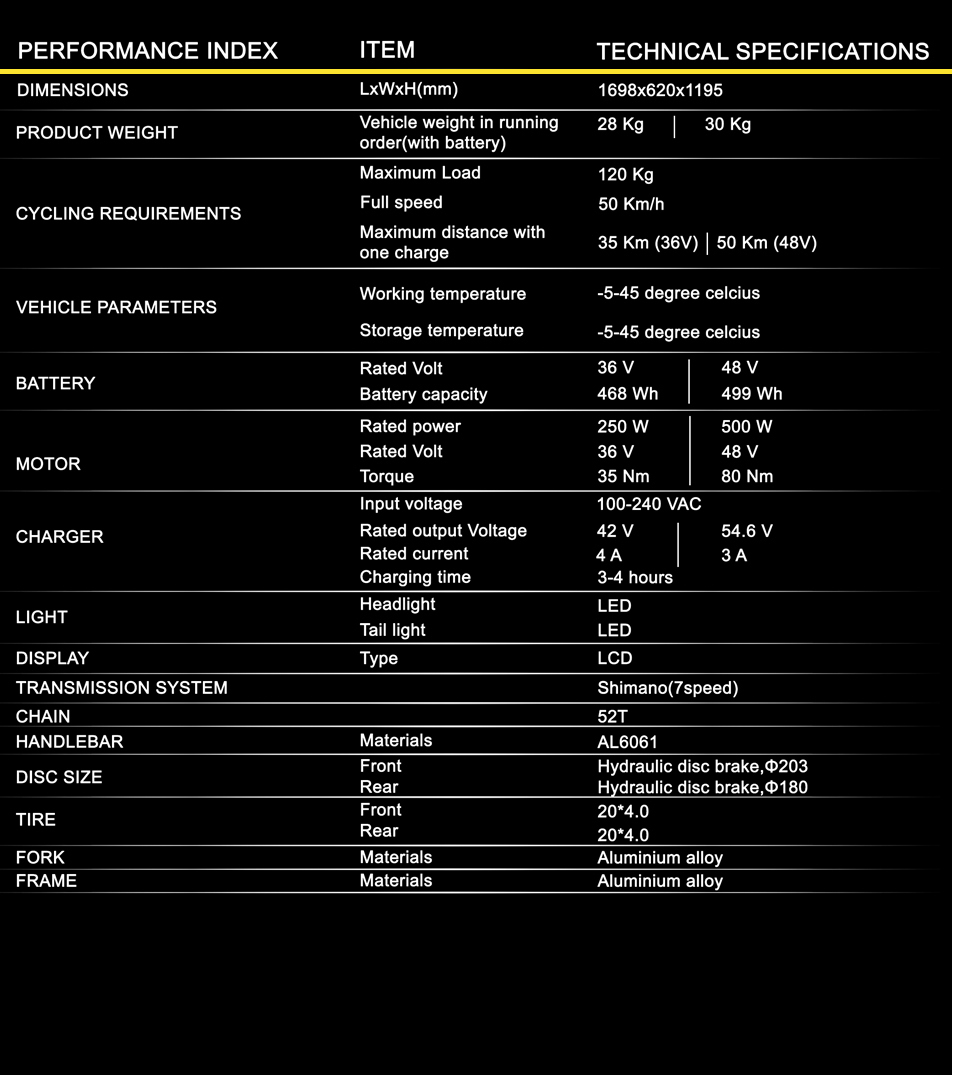

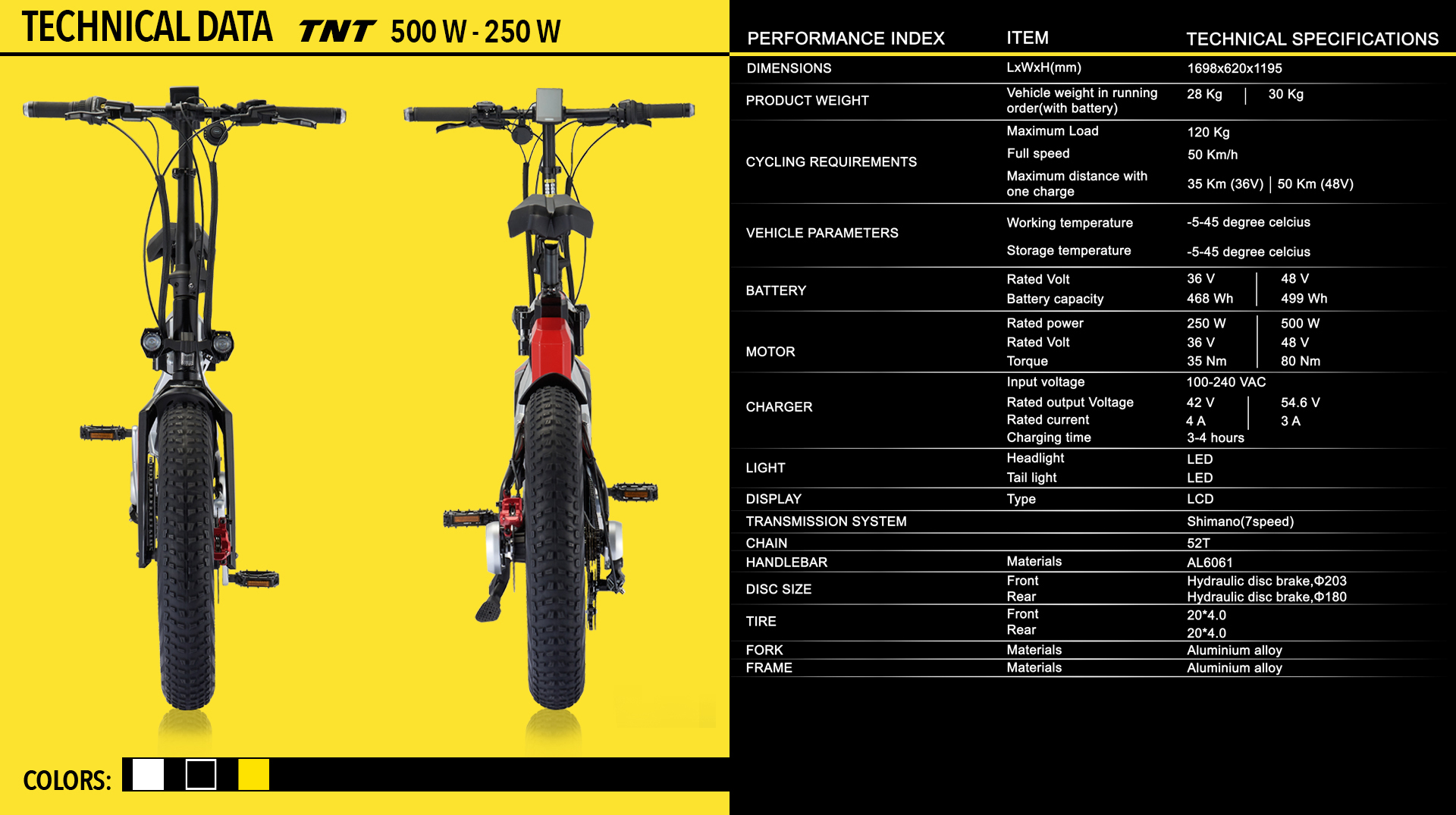

TECHNICAL DATA 250W | 500W | 750W
DIMENSIONS L x W x H (mm) 1698x620x1195
PRODUCT WEIGHT Vehicle weight in running order (with battery) 28 Kg | 30 Kg | 32 kg
CYCLING REQUIREMENTS Maximum Load
Full Speed
Maximum distance with one charge
100 Kg
25 Km/h
50 km
VEHICLE PARAMETERS Working temperature
Storage Temperature
-5-45 degree celcius
-5-45 degree celcius
BATTERY Rated Volt
Battery capacity
48 V
624 Wh
MOTOR Rated power
Rated Volt
Torque
250 W | 500W | 750 W
48 V
18 Nm | 38 Nm | 35 Nm
CHARGER Input voltage
Rated output Voltage
Rated current
Charging time
100-240 VAC
57.6 V
2 A
6 – 7 hours
LIGHT Headlight
Tail light
LED
LED
DISPLAY Type LCD
TRANSMISSION SYSTEM Shimano (7 speed)
CHAIN 52T
HANDLEBAR Materials AL6061
DISC SIZE Front
Rear
Hydraulic disc brake φ203
Hydraulic disc brake φ180
TIRE Front and Rear 20*4.0
FORK / FRAME Materials Aluminium alloy
