| TECHNICAL DATA | 1500W | 4000W | |
|---|---|---|
| DIMENSIONS | L x W x H (mm) | 1900x670x1100 |
| PRODUCT WEIGHT | Vehicle weight in running order (with battery) | 88 kg | 98 kg |
| CYCLING REQUIREMENTS | Maximum Speed Maximum distance with one charge |
45 km/h | 100 km/h 60 km (40 km/h) | 100 km (40 km/h) |
| CLIMBING ANGLE | 18 Degree (Load – 75 kg at Speed 25km/h) | 18 Degree (Load – 150 kg at Speed 25km/h) | |
| VEHICLE PARAMETERS | Working temperature Storage Temperature |
-5-45 degree celcius -5-45 degree celcius |
| BATTERY | Rated Volt Battery capacity Weight |
72 V 1440 Wh | 2880 Wh 10 kg | 20 kg |
| MOTOR | Rated power Rated Volt Torque |
1500 W | 4000 W 72 V | 72 V 150 Nm | 232 Nm |
| CHARGER | Input voltage Rated output Voltage Rated current Charging time |
100-240 V 84 V 7 A 3 hours | 5-6 hours |
| LIGHT | Headlight Tail light |
LED LED |
| SPEEDOMETER | Size | 5 inches LCD |
| SUSPENSION | Front Rear |
Telescopic hydraulic front fork Hydraulic mono shock absorber progressive cantilever system |
| WHEEL BASE | 1320 mm | |
| SEAT HEIGHT | 780 mm | |
| MINIMUM GROUND CLEARANCE | 140 mm | |
| BRAKE | Front and Rear | Hydraulic disk brake Hydraulic disk brake and CBS |
| TIRE | Front Rear |
Tubeless 100/90-12 Tubeless 110/90-12 |
| FRAME | Materials | High-tensile steel |
| CERTIFICATE | EEC:L1 e-b | EEC:L3e-A1/DOT |
Advanced TFT speedometer
TENNIS E is equipped with a latest generation 5.5 inch dashboard with TFT technology, from which three different driving modes can be selected: eco, comfort and sport.
Led lighting
360° View
The front and rear lighting is LED which emits a more intense and strong light beam at night while it is much more visible during the day. In addition to safety, the LED system has an almost interminable lifespan.
Brilliant acceleration and greater control
It is equipped with a powerful 4000 watt electric motor for maximum speed of 85 kilometers per hour (85 kmph). The engine provides 175 Nm of torque for fast acceleration. Velocifero TENNIS it is EEC/L1e-b/L3e-A1 approved and weighs 98 kg. TENNIS E surprises with its high performance: developed with IPM (Internal Permanent Magnet) technology, it can easily tackle a slope of 18°.
High quality lithium batteries

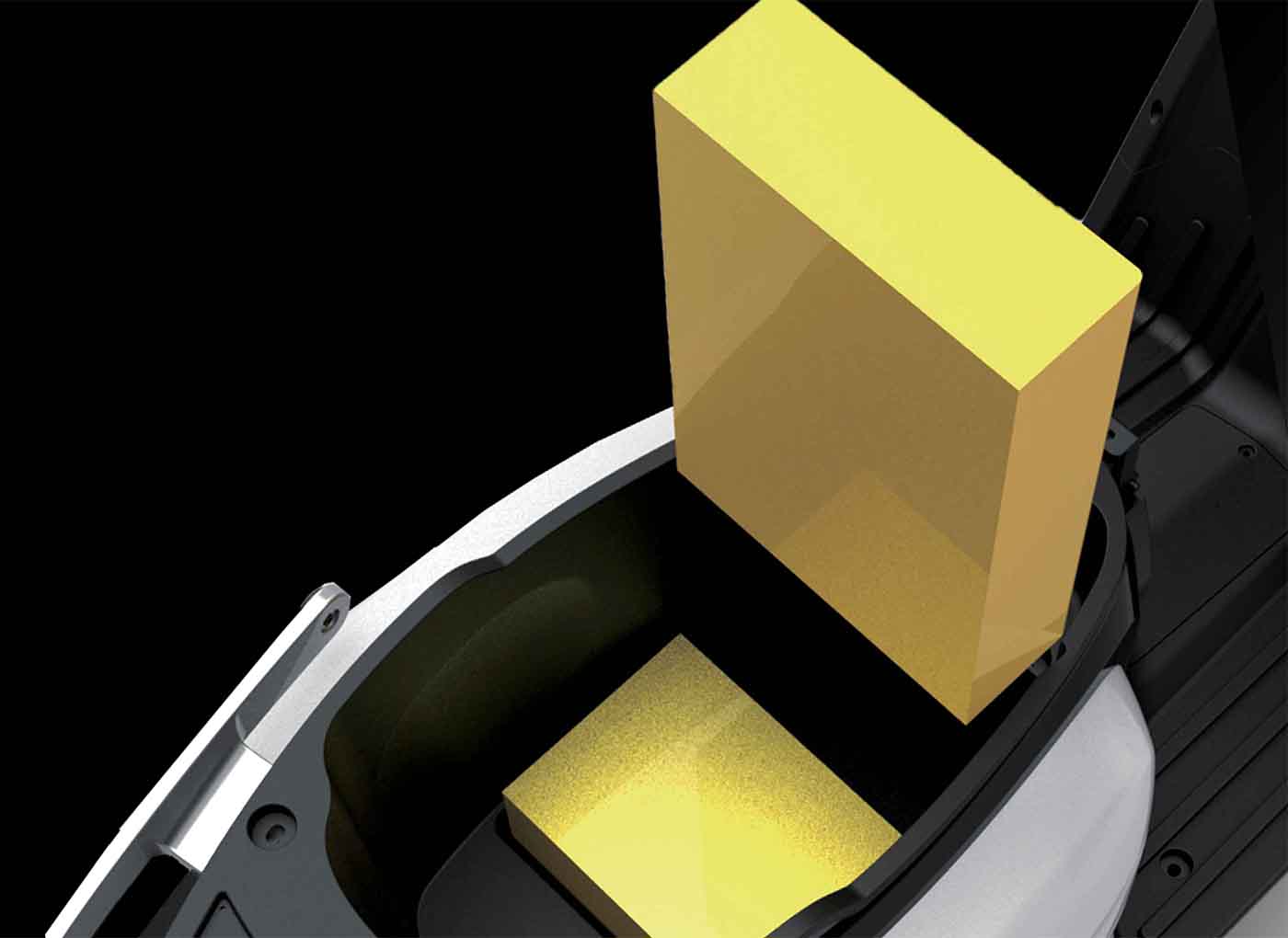

The electric scooter is powered by two removable batteries with a total capacity of 2.88 kWh, supplied as standard, which allow the scooter to reach a range of more than 100 km.
Comfort and security
Cantilever rear suspension is with monoshock absorber, for maximum comfort driving.
The front shock absorber is a telescopic hydraulic fork for better road holding.
The great system front and rear braking is by disc hydraulic of 220 mm.
Functionality and design

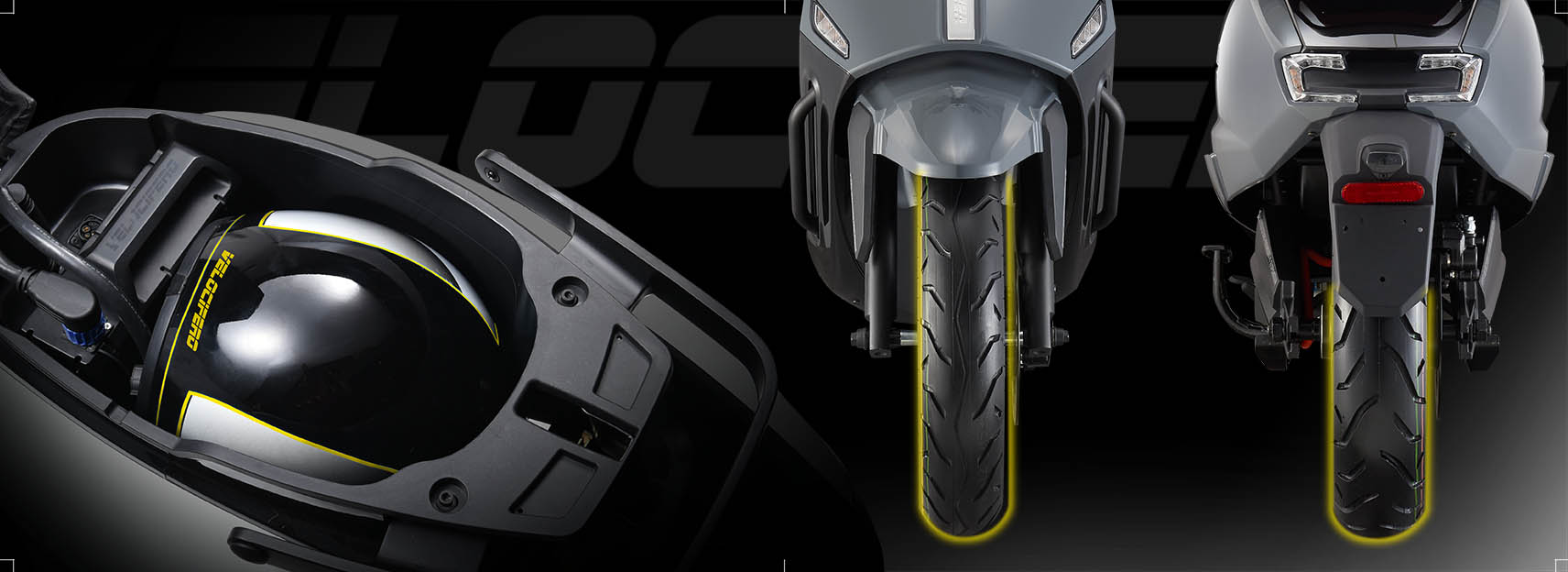

Thanks to the positioning of the progressive rear suspension under the footrest, a sophisticated solution rarely applied on scooters, TENNIS E has a spacious storage case to put a helmet.
The 12 inches allow a comfortable and safe ride.
