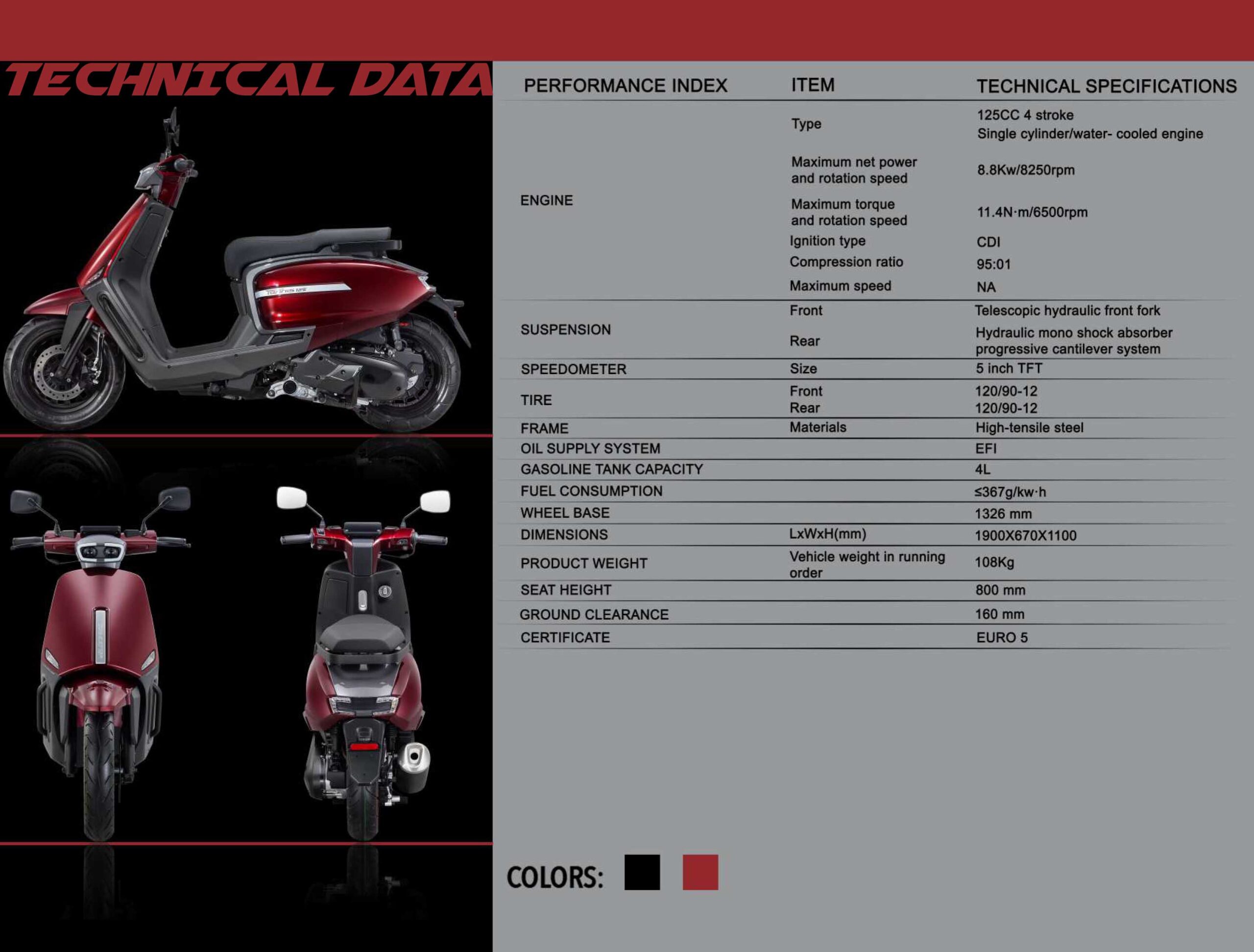

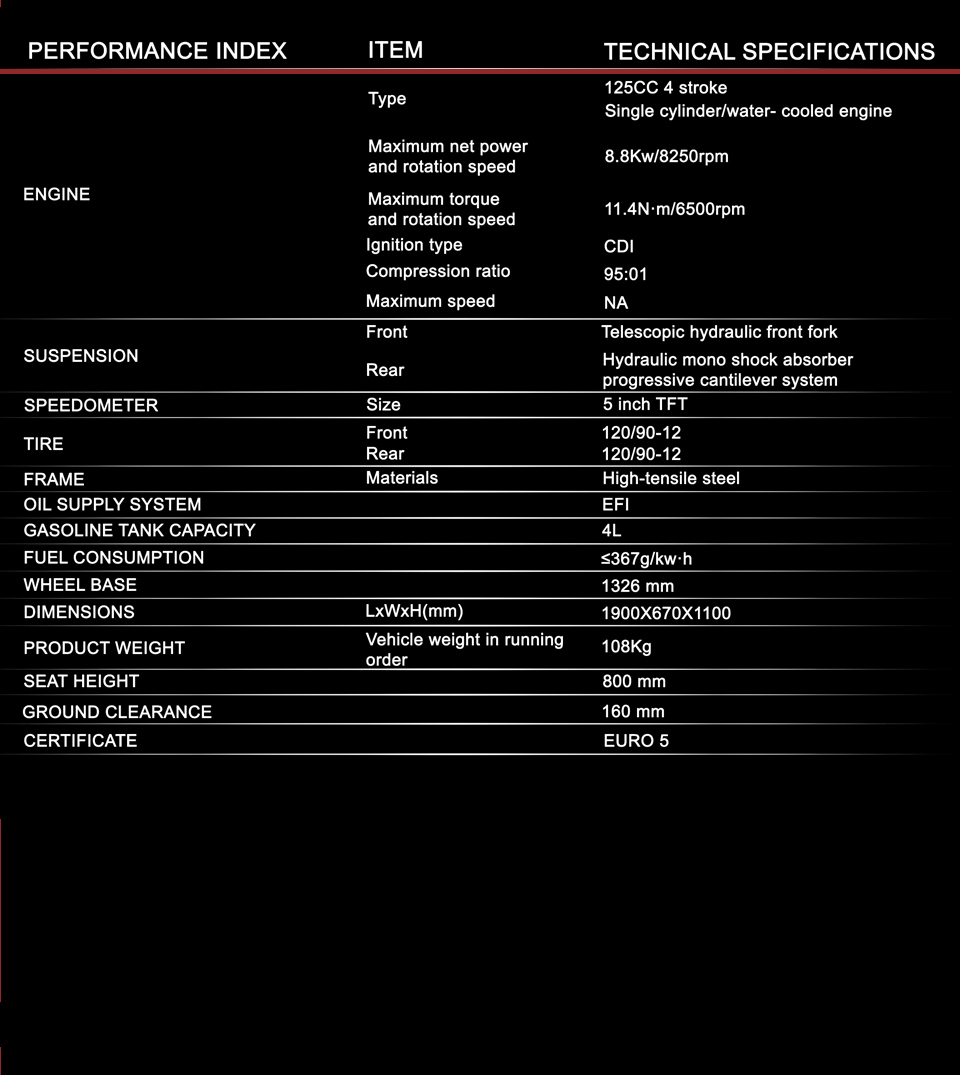

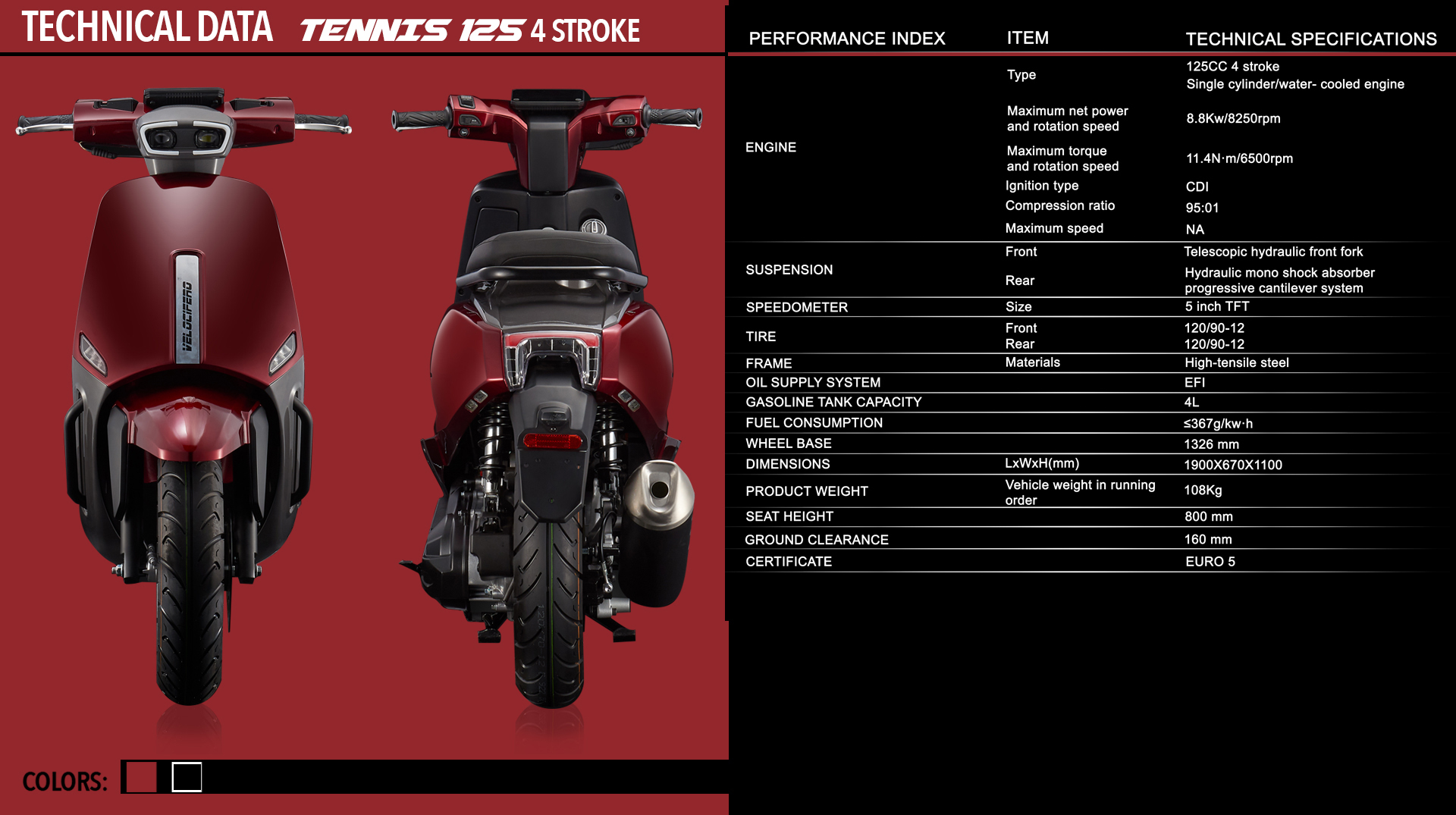

TECHNICAL DATA | ||
---|---|---|
DIMENSIONS | L x W x H (mm) Seat height Ground clearance Wheel base |
1900x670x1100 820 mm 100 mm 1326 mm |
PRODUCT WEIGHT | Vehicle weight in running order | 108 Kg |
ENGINE | Type Characteristics Maximum net power and rotation speed Maximum torque and rotation speed Ignition type Compression ratio Maximun speed |
125CC 4 stroke| 150CC 4 stroke 4 valve single cylinder water cooled engine 8.9kw/8250rpm| 11.5kw/8250rpm 11.7N m/6500rpm | 14.5N m/6500rpm ECU | CDI 12:1| 12:1 100 Km/h | 110 Km/h |
SPEEDOMETER | Size | 5 inch TFT |
SUSPENSION | Front Rear |
Telescopic hydraulic front fork Hydraulic double shock absorber |
OIL SUPPLY SYSTEM | EFI | |
GASOLINE TANK CAPACITY | 6L | |
FUEL CONSUMPTION | ≤367g/kw h | |
TIRE | Front Rear |
100/90- 12 120/70- 12 |
FRAME | Materials | High-tensile steel |
CERTIFICATE | EURO 5 |
5 inch TFT speedometer
TENNIS is equipped with a latest generation dashboard screen 5.5 inch TFT and interactive use interface.
LED lighting 360° wiew
It has high-brightness LED front and rear lights. A clean light, free of ultraviolet and infrared rays, strong and intense, to be more visible both during the day and during night-time travel.
Greater performance and lower consumption
TENNIS 125 is powered by a 125cc, 4-valve, 4-stroke single-cylinder water cooled engine, with power supplyof 8.8 kW and 11.4 Nm of torque; the weight is of 108 kilograms.
Maximum driving stability
Equipped with suspensions hydraulics for a maximum driving comfort.
The front suspension is characterized by a telescopic hydraulic fork, the rear suspension has double shock absorbers plumbers for maximum stability guide.
More safety, longer durability
Thanks to the 12″ wheels you drive more comfortably and safely. Made of rubber material of high quality, they are resistant, robust and have a long life.
TENNIS 125 cc has a CBS-system high braking performance. The great system front and rear braking is by 200 mm Hydraulic disc brake.
Design and functionality
The storage case is quite spacious to put 2 helmets and other items.
Every detail is designed to offer you maximum comfort.
